NORMAL APPEARANCE OF THE BOUIN'S FLUID FIXED RAT HEAD

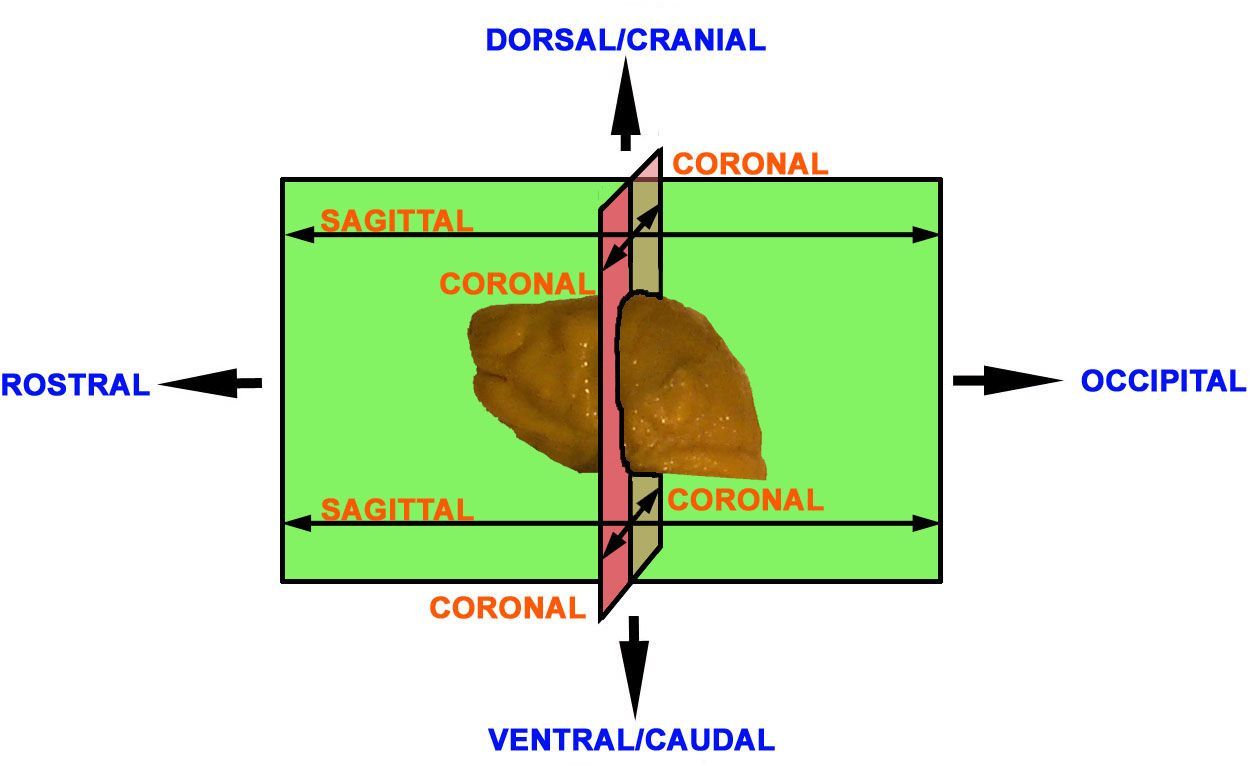

Anatomical planes
It is considered to be important that the examiner has an appreciation of the terms used to describe the angles at which the specimen is viewed and which can be used to accurately describe observations.
Anatomical description requires the use of a series of terms to denote angles, views, axes, planes and directions. As with the nomenclature of structures, there are various conventions. The terms cranial (or dorsal) and caudal (or ventral) are used to denote the upper and lower regions of the head, respectively. "Rostral" is used to denote the nasal extremity of the head and "occipital" to denote the back of the head (the region at the junction of the head and neck).
The rat head
The images below show the normal appearance of Bouin's fluid fixed head sections in specimens at Day 21 of gestation (day mating observed = Day 0).
It is essential that both sides of each section is examined so that structures that exist is several sections can be visualised by the examiner in 3D.
It is recommended that all structures listed on the The International Register of Fetal Morphologists (IRFM) Expected Minimum Structure List for Fetal Morphology Examinations document be examined and that the Fixed head examination - key structures and notes document be used as a reference.
Learning objective: Compare the diagrams with your own specimens and identify all of the structures that have been labelled.
Click on the images below to open the photo gallery
Unlabelled Images

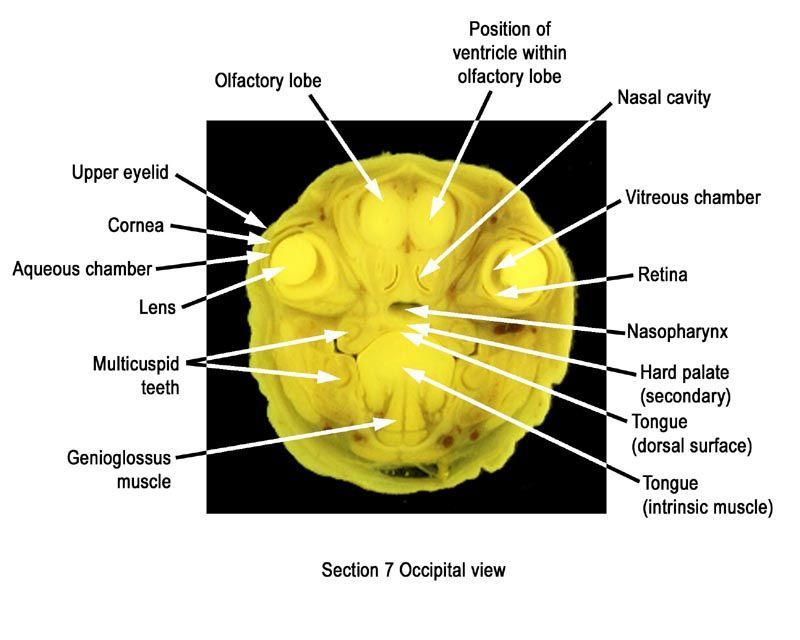

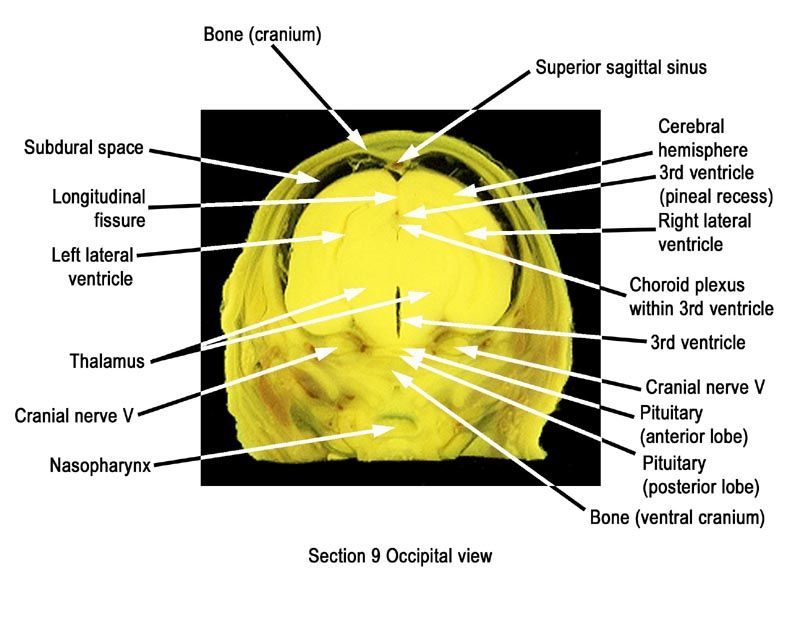

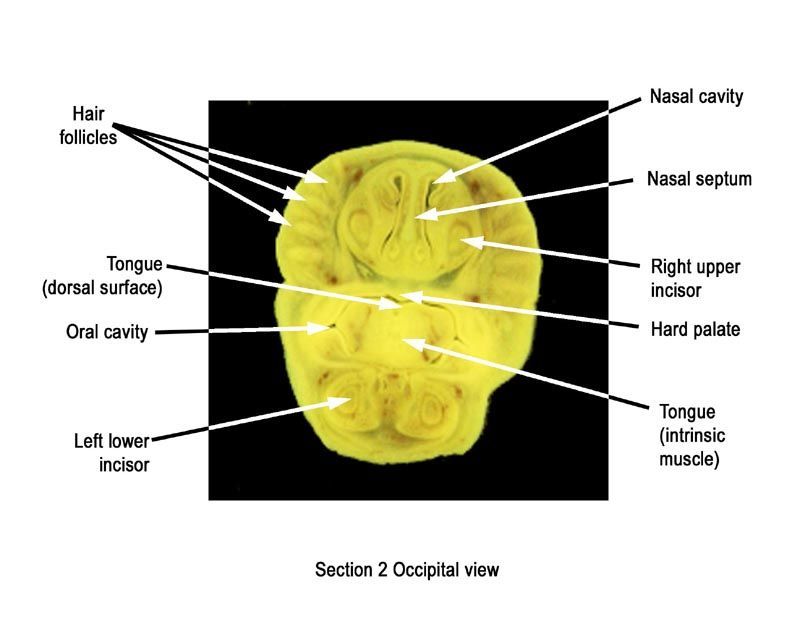

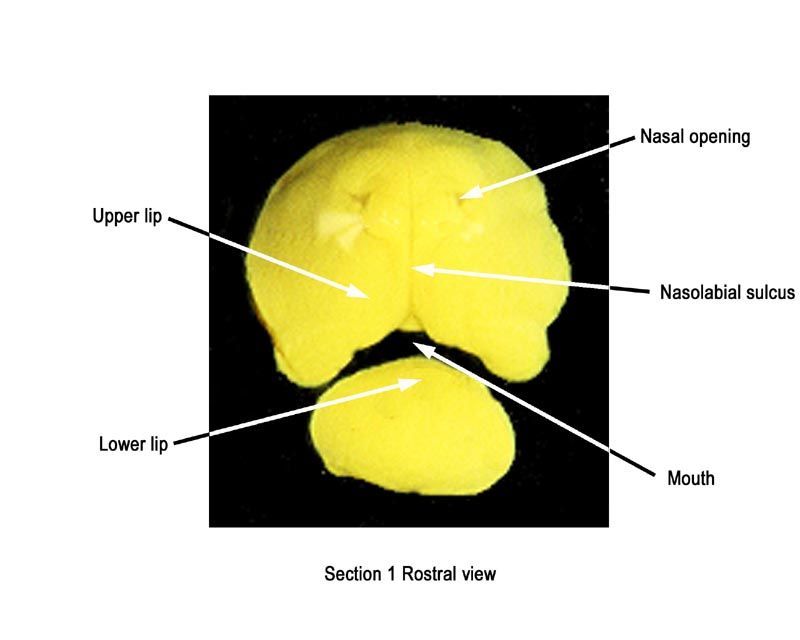

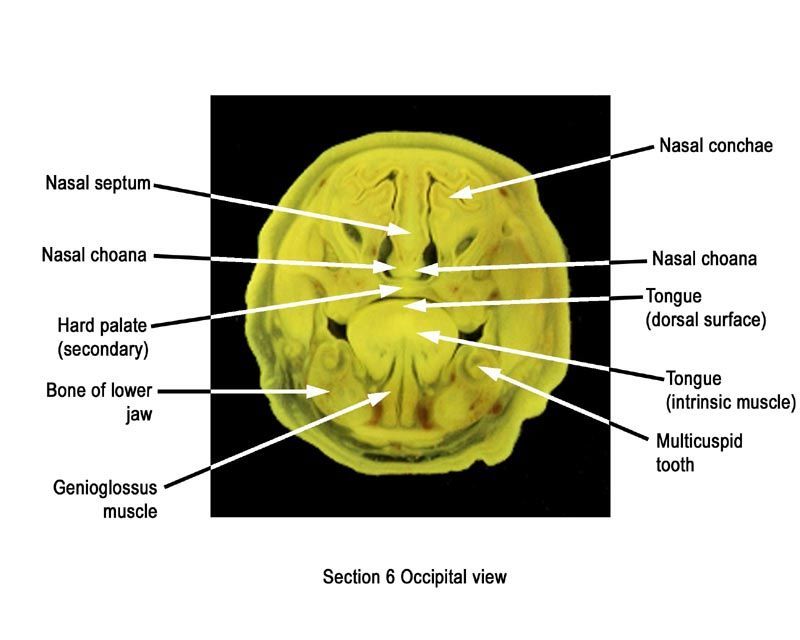

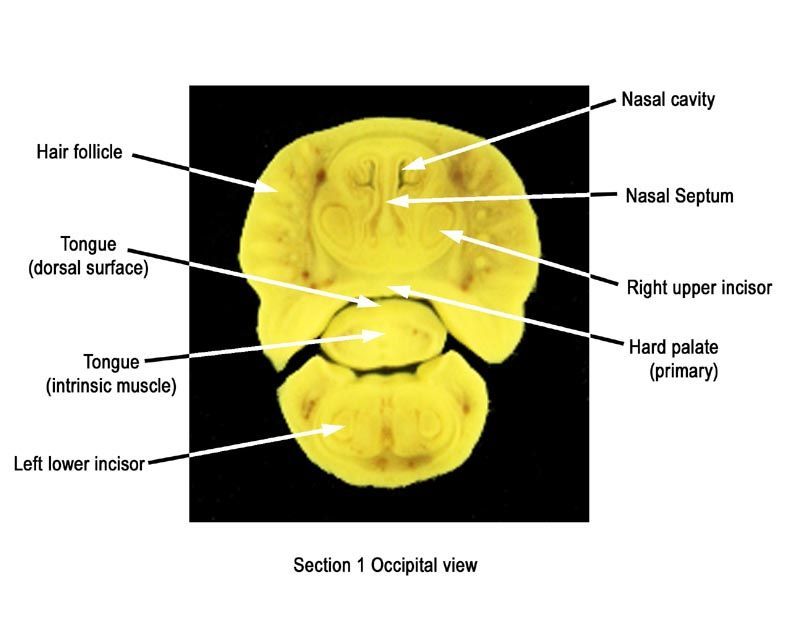

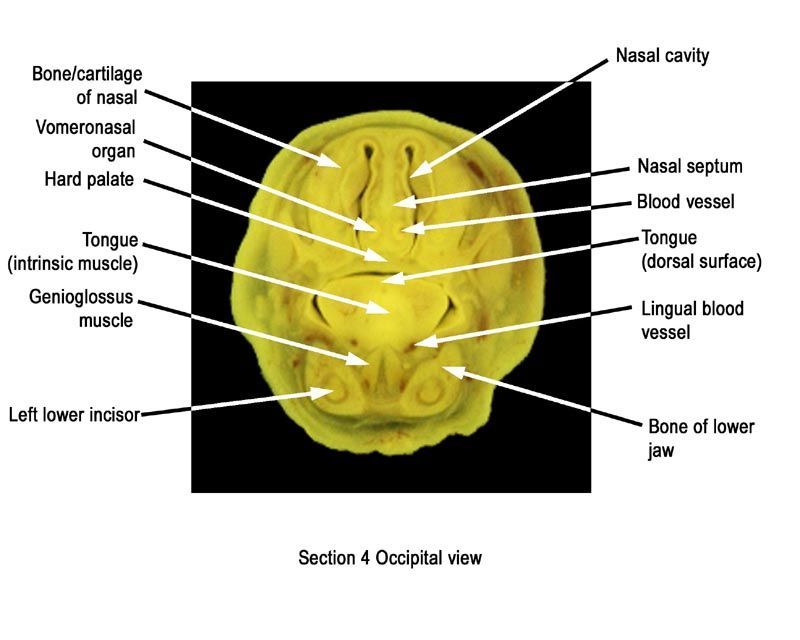

Labelled Images
